ORBEA Laufey 24 H30

Regular price $1,049.00 Save $-1,049.00
1 in stock
ORBEA Laufey 24 H30
ORBEA Laufey 24 H30
  • FRAME Orbea Laufey 24 6061 Aluminum 2021, 135x9 QR, Post Mount Disc Mount, 31,6 Seat Post, Internal Cable Routing, Removable hanger.
  • FORK Orbea Laufey 24 6061 Aluminum 2021, 100x9 QR, Post Mount Disc Mount, Mini Fender ready
  • CRANKSET Extra light 32t, 152mm, w/Chainguard
  • HEADSET VP-Z104PD 1-1/8" Semi-Cartridge
  • HANDLEBAR Alloy 31.8mm Riser 560mm
  • STEM Race Face Ride
  • SHIFTERS Shimano Deore M4100
  • BRAKES Shimano MT400 Hydraulic Disc
  • CASSETTE Sun Race 11-42t 10-Speed
  • REAR DERAILLEUR Shimano Deore M5120 SGS Shadow Plus
  • CHAIN KMC X10
  • WHEELS Orbea Alloy 24"
  • TYRES Kenda Booster K1277 24x2.20" 30TPI
  • SEATPOST Digit Alloy 31,6x300mm Offset 0
  • SADDLE Selle Royal Vivo Junior
  • MUDGUARD Orbea Custom narrow fork
  • CHAINGUIDE Orbea OC chainguide

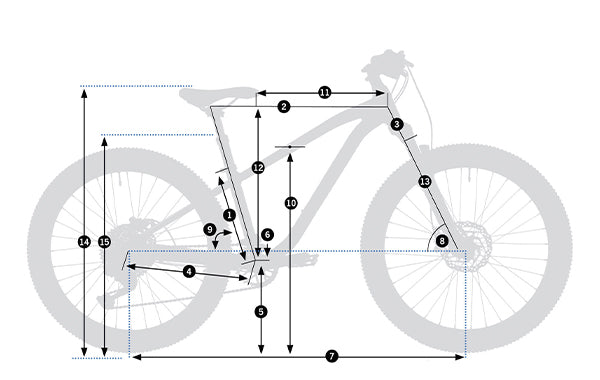

SIZE 20 24 27
1 - SEAT TUBE (C-T) 257 300 343
2 - TOP TUBE (EFF) 450 515 543
3 - HEAD TUBE 90 100 95
4 - CHAINSTAY 350 395 425
5 - BB HEIGHT 248 288 315
6 - BB DROP 23 35 43
7 - WHEELBASE 904 1019 1102
8 - HEAD ANGLE 66 66 65.5
9 - SEAT ANGLE 74 74 75
10 - STANDOVER 505 593 636
11 - REACH 322 366 389
12 - STACK 447 520 574
13 - FORK LENGTH 388 445 507
14 - MAX SEATPOST HEIGHT 706 842 900
15 - MIN SEATPOST HEIGHT 580 664 727
RAKE 40 40 44



SIZE CRANK STEM HANDLEBAR
24 152 60 560

* The handlebar size is centre-centre

HEIGHT ( CM ) HEIGHT ( IN ) SIZE
110-135 43.3"-53.1" 20
125-150 49.2"-59.1" 24
140-165 55.1-65.0" 27

* Estimated measurements
