• FRAME ORBEA WILD Full Suspension 2020 Carbon 160mm Travel FRONT TRIANGLE: Carbon, REAR TRIANGLE: Aluminum, AlloyLink , BATTERY COVER: Polymer , Boost 12x148 Bosch Gen4
• SHOCK Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm

  Consult other components
• FORK Fox 36 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized
• CRANKSET PW-NW32-G4
• CRANK Etherteen Plus Alu 160mm
• HEADSET OC Key Holder
• HANDLEBAR Race Face Aeffect 35 20mm Rise 780mm
• STEM Race Face Aeffect R 35mm interface
• SHIFTERS Shimano SLX M7100
• BRAKES Shimano MT501 BR520 Hydraulic Disc

  Consult other components
• CASSETTE Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
• REAR DERAILLEUR Shimano XT M8100 SGS Shadow Plus
• CHAIN KMC e12 Turbo Silver
• WHEELS DT Swiss H-1900 Spline 30c TLR 15/110mm CL

  Consult other components
• TYRES Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
• TYRES Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
• PEDALS N/A
• SEATPOST OC2 Dropper 31.6mm

  Consult other components
• SADDLE Selle Royal Vivo

  Consult other components
• LOCK Abus battery powertube lock PLUS
• CHAINGUIDE Orbea OC chainguide 32-38t
• MOTOR BOSCH Performance CX Cruise (25km/h) BDU450CX
• BATTERY BOSCH Powertube 625Wh Horizontal BBP290

  Consult other components
• DUAL BATTERY
• DISPLAY BOSCH Performance Purion
• CHARGER Compact Charger 2A (100-240V) Worldwide

01. FRAME Eone-Sixty Lite; 160 Tr
02. SIZES Medium
03. COLOURS Red (Black)
04. FORK Rock Shox Lyrik Rc; Air; 160 Tr; Tapered
05. REAR SHOCK Rock Shox Super Deluxe R
06. MOTOR Shimano E8000; 70Nm
07. BATTERY Shimano E8010; 500Wh
08. BATTERY CHARGER Shimano Ec-E6000
09. DISPLAY Shimano Sc-E8000
10. REAR DERAILEUR Shimano Xt M8000 Shadow+
11. REAR SHIFTER Shimano Xt 11
12. BRAKES Shimano Xt Fin
13. FRONT ROTOR Shimano Rt64; 203 Mm
14. REAR ROTOR Shimano Rt64; 203 Sc
15. CHAINWHEEL Shimano Cre80-B; 34 T
16. CRANK/SIZE Shimano E8050; Hollow 170L
17. CHAIN Kmc X11E
18. FREEWHEEL M8000; 11-46 T; 11 S
19. PEDALS Vp; Vpe-537
20. HANDLEBAR Merida Expert Etr; 780 W; 20 R
21. HANDLEBAR STEM Merida Expert Etr; 35 D; 0 A
22. HEAD SET Fsa No.57/55E Neck
23. SEAT POST Merida Expert Tr; 30.9 D; 0 Sb; S: 100 Spt - M/L/Xl 125 Spt;
24. SADDLE Merida Expert Cc
25. FRONT HUB Dt Swiss Dt350; 110X15 Whf; 32 H; Centerlock
26. REAR HUB Dt Swiss Dt350; 148X12 Whr; 36 H; Centerlock
27. FRONT AXLE Attached
28. REAR AXLE Merida Boost Axle
29. SPOKES Black Stainless
30. RIMS Merida Expert Tp; 38 Iw
31. FRONT TYRE Maxxis Dhr Ii; 27.5+ 2.8 "; Fold; 3C Exo Tr
32. REAR TYRE Maxxis Dhr Ii; 27.5+ 2.8 "; Fold; 3C Exo Tr
33. KICKSTAND -
34. WEIGHT 22.15Kg

19 eONE SIXTY 500



01. FRAME	Eone-Sixty Lite; 160 Tr
02. SIZES	S-M-L-Xl
03. COLOURS	Glossy Blue
04. FORK	Suntour Aion 35-Boost Lor Ds 15Qlc32-110 29'' 160Mm
05. REAR SHOCK	Suntour Triair 3Cr
06. MOTOR	Shimano E7000; 60Nm
07. BATTERY	Shimano E8010; 500Wh
08. BATTERY CHARGER	Shimano Ec-E6002-1
09. DISPLAY	Shimano Sc-E7000
10. REAR DERAILEUR	Shimano Deore Shadow+
11. REAR SHIFTER	Shimano Slx 11
12. BRAKES	Shimano Mt-500
13. FRONT ROTOR	Shimano Rt64; 203 Mm
14. REAR ROTOR	Shimano Rt54; 180 Mm
15. CHAINWHEEL	Cre70-B; 34T No Cg
16. CRANK/SIZE	Shimano E8000; 165Mm
17. CHAIN	Kmc E10 Sport Ept
18. FREEWHEEL	Cs-Hg500-10 11-42T
19. PEDALS	Vp; Vpe-537
20. HANDLEBAR	Merida Expert Etr; 780 W; 20 R
21. HANDLEBAR STEM	Merida Expert Etr; 35 D; 0 A
22. HEAD SET	Fsa No.57/55E Neck
23. SEAT POST	Merida Expert Tr; 30.9 D; 0 Sb; S: 100 Spt - M/L/Xl 125 Spt;
24. SADDLE	Merida Comp Cc
25. FRONT HUB	Mt400-B; 110X15 Whf; 32 H; Centerlock
26. REAR HUB	Mt400-B; 148X12 Whr; 36 H; Centerlock
27. FRONT AXLE	Attached
28. REAR AXLE	Merida Boost Axle
29. SPOKES	Black Stainless
30. RIMS	Merida Expert Tp
31. FRONT TYRE	Maxxis Dhr Ii; 27.5+ 2.8 "; Fold; 3C Exo Tr
32. REAR TYRE	Maxxis Dhr Ii; 27.5+ 2.8 "; Fold; 3C Exo Tr

01. FRAME	Fluid VLT Aluminium
02. FORK	SR Suntour XCM 34 DS 100mm/15mm
03. REAR SHOCK	-
04. HEADSET	FSA No.57 Headset Block w / sealed bearing, internal
05. HEADSET SPACER	1x10mm / 1x5mm / 1 x 2.5mm
06. GRIPS	VP lock on grip
07. HANDLE BAR	Norco 20 mm rise 6061 800mm x 20mm rise, 35mm bar bore
08. STEM	Alloy 6061 50mm stem
09. SEAT POST	JD TransX YSP18 JL 31.6mm with 1x lever 100/130mm travel
10. SEAT POST CLAMP	Norco design alloy nutted clamp
11. SADDLE	WTB Volt Sport trail saddle
12. FRONT BRAKE	Shimano Altus M-315 hydraulic disc w/180mm rotor
13. REAR BRAKE	Shimano Altus M-315 hydraulic disc w/180mm rotor
14. SHIFTER REAR	Shimano Deore SL 6000 rapid fire 10 speed
15. REAR DERAILLEUR	Shimano Deore 10 speed
16. CASSETTE	Shimano Deore 10 speed 11-42T
17. CHAIN	KMC 10 speed X10 E bike chain
18. CRANKSET	Shimano crank to fit E-8000 series motor
19. BOTTOM BRACKET	Samox 32T narrow /wide ring with Shimano Spider
20. PEDALS	VP Nylon Flat Pedal
21. FRONT HUB	Shimano Deore 110x15mm
22. FRONT HUB SKEWER	SR Suntour axle
23. REAR HUB	Shimano Deore 148x12 boost
24. REAR HUB SKEWER	TransX 12mm TA alloy w/allen key
25. SPOKES/NIPPLES	Stainless Steel 14g - Black
26. RIMS	Alex FR 37 650B Plus 32H 30mm inner width E-Bike spec
27. TYRES	WTB Trail Boss Comp 650B x 2.6
28. MOTOR	Shimano E7000
29. BATTERY	500W Simplo intube
30. FEATURES	Aluminum 27.5 plus trail frame with intube battery
31. FEATURES	Boost front and rear hub spacing
32. FEATURES	500 Watt intube battery with Shimano E7000 series motor

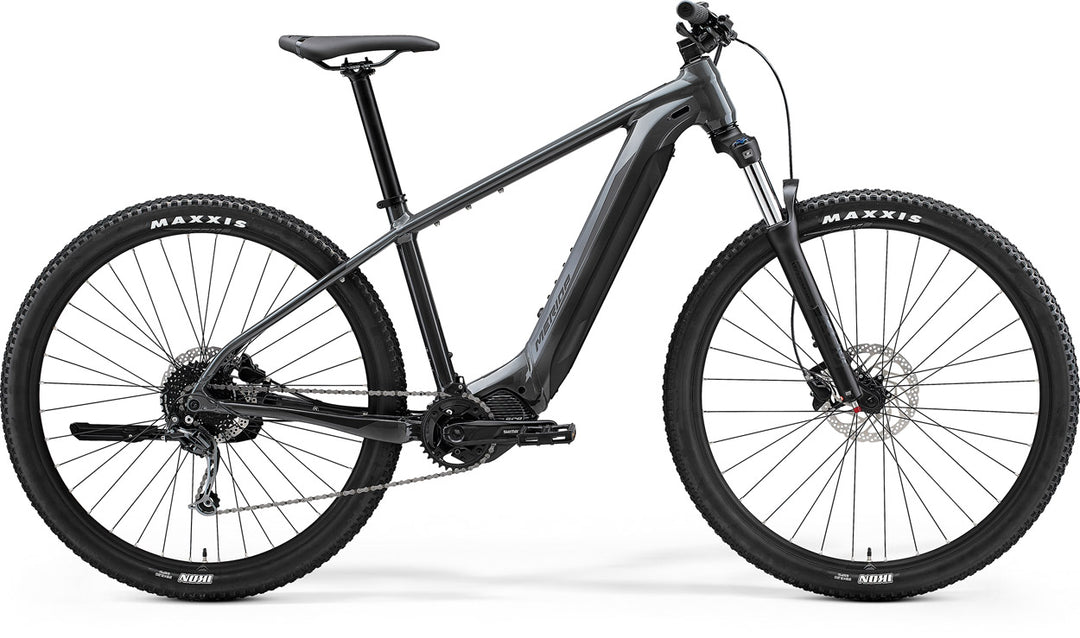

01. FRAME	eBIG.NINE LITE
02. SIZES	M-L-XL
03. FORK	Suntour XCM32 LOR; Air; 100 STR; Tapered; 47mm fork offset
04. REAR SHOCK	-
05. DRIVE UNIT	Shimano E7000; 60Nm
06. BATTERY	Shimano E8010; 504Wh
07. BATTERY CHARGER	Shimano EC-E6002; 2A
08. DISPLAY	Shimano SC-E7000
09. SWITCH	Shimano SW-E7000-L
10. REAR DERAILLEUR	Shimano Deore Shadow+
11. SHIFTERS	Shimano Deore
12. BRAKE-FRONT	Shimano MT-200; 2 piston
13. BRAKE-REAR	Shimano MT-200; 2 piston
14. ROTOR-FRONT	Shimano RT30; 180 mm
15. ROTOR-REAR	Shimano RTEM300; 180 mm
16. CHAINWHEEL	Shimano CRE70-B; 34 ATC
17. CRANK	Shimano E8000
18. CHAIN	CNHG54
19. CASSETTE	Shimano HG500; 11-42 ATC, 10 GER
20. PEDALS	VP; VPE-537
21. HANDLEBAR	MERIDA Expert CC; 720 WHB; 10 RHB
22. HANDLEBAR STEM	MERIDA Expert CC; 31,8 DSH; 6 ASD
23. HEAD SET	Merida 2341 Neck
24. SEAT POST	MERIDA Expert; 30.9 DSP; 15 SSB
25. SADDLE	MERIDA Comp CC
26. HUB-FRONT	Shimano MT400-B; 110x15 WHF; 32 SPH; Centerlock
27. HUB-REAR	Shimano MT400-B; 148x12 WHR; 36 SPH; Centerlock
28. AXLE-FRONT	attached
29. AXLE-REAR	MERIDA COMP TR; including removeable lever, 6/4mm allen key
30. SPOKE	Black stainless
31. RIMS	MERIDA Comp CC; 20 IWR;
32. TYRES	Maxxis Ardent Race; 29x2.2"; fold
33. KICKSTAND	CL-KA98, 29"

01. FRAME	eBIG.SEVEN LITE
02. SIZES	XS-S-M
03. FORK	Suntour XCM32 LOR; Air; 100 STR; Tapered; 47mm fork offset
04. REAR SHOCK	-
05. DRIVE UNIT	Shimano E7000; 60Nm
06. BATTERY	Shimano E8010; 504Wh
07. BATTERY CHARGER	Shimano EC-E6002; 2A
08. DISPLAY	Shimano SC-E7000
09. SWITCH	Shimano SW-E7000-L
10. REAR DERAILLEUR	Shimano Deore Shadow+
11. SHIFTERS	Shimano Deore
12. BRAKE-FRONT	Shimano MT-200; 2 piston
13. BRAKE-REAR	Shimano MT-200; 2 piston
14. ROTOR-FRONT	Shimano RT30; 180 mm
15. ROTOR-REAR	Shimano RTEM300; 180 mm
16. CHAINWHEEL	Shimano CRE70-B; 34 ATC
17. CRANK	Shimano E8000
18. CHAIN	CNHG54
19. CASSETTE	Shimano HG500; 11-42 ATC, 10 GER
20. PEDALS	VP; VPE-537
21. HANDLEBAR	MERIDA Expert CC; 720 WHB; 10 RHB
22. HANDLEBAR STEM	MERIDA Expert CC; 31,8 DSH; 6 ASD
23. HEAD SET	Merida 2341 Neck
24. SEAT POST	MERIDA Expert; 30.9 DSP; 15 SSB
25. SADDLE	MERIDA Comp CC
26. HUB-FRONT	Shimano MT400-B; 110x15 WHF; 32 SPH; Centerlock
27. HUB-REAR	Shimano MT400-B; 148x12 WHR; 36 SPH; Centerlock
28. AXLE-FRONT	attached
29. AXLE-REAR	MERIDA COMP TR; including removeable lever, 6/4mm allen key
30. SPOKE	Black stainless
31. RIMS	MERIDA Comp CC; 20 IWR;
32. TYRES	Maxxis Ardent Race; 27.5x2.2"; fold
33. KICKSTAND	CL-KA98



The eONE-SIXTY has new, revised geometry and a slackened head angle at 65.5 degrees, changed the crank length to 165mm (from 175mm) and follows the on trend offering of many new Shimano powered bikes by providing a 29er on the front, with a 2.5″ Maxxis Assegai and a 27.5″ on the rear wrapped in a 2.6″ DHR2. The new

Merida claim that helps keep the chain stay as short as possible whilst offering as much grip as possible in the rear, whilst the 29er on the front helps with the rolling abilities for rocks, roots and chunkier stuff.

Moving to carbon meant that Merida had to work out a way of dissipating the heat generated from the battery. Carbon is not a great heat dissipator, so Merida have placed slots near the head tube to help keep the battery cool. Merida call this the Thermo Gate!

•

•

•

The eONE-SIXTY integrated battery has a dual locking mechanism. Firstly, the battery is held in place with a catch then it is secured with Allen bolts. The tool for this is neatly held in the rear axle. Merida claim that this not only protects the battery, but reduces the risk of battery noise and vibrations, as well as making it easy to remove, replace with a spare or just recharge without having to do so on the bike.

•

•

•

•

•

e-ONE-SIXTY uses the regarded Shimano E8000 motor, with up to 70 Nm of power. The bike also moves over to the neater E7000 mode shifter which means an under bar dropper can be used.

One of the strongest attributes of the original bike was its playful, agile but composed handling. Merida wanted to all of that into the new generation of bike. Lowering of the bottom bracket, slackening the head angle and the new mixed wheel sizes, Merida say, should help retain the lively character of the original bike.

01. FRAME Sight Carbon 650B 150mm travel
02. FORK RockShox Pike RC 160mm Travel, Boost, Charger 2 Damper, 46mm Offset
03. REAR SHOCK Rockshox Deluxe RT Debonair Trunnion mount, custom tune
04. HEADSET Acros block lock ZS-44/56 sealed bearing headset
05. HEADSET SPACER 3x10mm / 1x5mm / 1 x 2.5mm
06. GRIPS Ergon GE 10 EVO black grips
07. HANDLE BAR Norco 20 mm rise 6061 800mm, 35mm bar bore
08. STEM Alloy forged 6061 50mm stem
09. SEAT POST JD TransX YSP-12JL Dropper 100mm S/125mm M/150mm L, 31.6, 1x lever
10. SEAT POST CLAMP Norco design alloy nutted clamp
11. SADDLE WTB Volt Sport
12. FRONT BRAKE Sram Guide T w/200mm rotor
13. REAR BRAKE Sram Guide T w/200mm rotor
14. SHIFTER REAR Sram NX Eagle 12 speed
15. REAR DERAILLEUR Sram NX Eagle
16. CASSETTE Sram NX Eagle 12 speed cassette 11-50T
17. CHAIN Sram NX Eagle PC12 speed chain
18. CRANKSET Shimano FC-E8000, 165mm w/32T Sram Eagle narrow/wide
19. BOTTOM BRACKET Samox 104 BCD Spider for Shimano spline, boost 53mm
20. PEDALS -
21. FRONT HUB Novatec 110x15 sealed bearing disc hub
22. FRONT HUB SKEWER axle ( comes with fork)
23. REAR HUB DT H370 148x12 Boost sealed w/XD driver E-MTB rated
24. REAR HUB SKEWER Syntace X-12 system axle
25. SPOKES/NIPPLES Sapim stainless steel butted front, DT Alpine rear
26. RIMS WTB ST I29 TCS 2.0 27.5
27. TYRES Maxxis Minion DHF/DHRII 27.5x2.6 EXO/TR
28. MOTOR Shimano E8000
29. BATTERY 600W Simplo Intube

01. FRAME Sight Carbon 650B 150mm travel
02. FORK Fox Performance 36 160mm travel boost E-bike rated
03. REAR SHOCK Fox Performance Float DPX2 with LV and EVOL, 3 pos. lever
04. HEADSET Acros block lock ZS-44/56 sealed bearing headset
05. HEADSET SPACER 3x10mm / 1x5mm / 1 x 2.5mm
06. GRIPS Race Face Love Handle lock on grips
07. HANDLE BAR Race Face Turbine R 35mm, 800mm, 20mm rise
08. STEM Race Face Aeffect R 50mm ext , 35mm bar bore
09. SEAT POST BikeYoke Revive Dropper 125mm S/160mm M/185mm L, 31.6Triggy lever
10. SEAT POST CLAMP Norco design alloy nutted clamp
11. SADDLE WTB Volt Sport
12. FRONT BRAKE Sram Code R hydraulic disc brake w/200mm rotor
13. REAR BRAKE Sram Code R hydraulic disc brake w/200mm rotor
14. SHIFTER REAR Sram GX Eagle 12 speed
15. REAR DERAILLEUR Sram GX Eagle
16. CASSETTE Sram Eagle Xglide 1275 10-50T cassette
17. CHAIN Sram NX Eagle 12 speed chain
18. CRANKSET Shimano FC-E8000, 165mm w/32T Sram Eagle narrow/wide
19. BOTTOM BRACKET Samox 104 BCD Spider for Shimano spline, boost 53mm
20. PEDALS -
21. FRONT HUB DT E-1700 110x15 sealed bearing disc hub
22. FRONT HUB SKEWER Comes with fork
23. REAR HUB DT E1700 Hybrid 148x12 Boost sealed w/XD driver
24. REAR HUB SKEWER Syntace X-12 system axle
25. SPOKES/NIPPLES DT E 1700 Hybrid E-bike rated wheelset
26. RIMS DT E 1700 Hybrid E-bike rated wheelset
27. TYRES Maxxis Minion DHF/DHRII 27.5x2.6 EXO/TR
28. MOTOR Shimano E8000
29. BATTERY 600W Simplo Intube

Specifications
01. FRAME eONE-SIXTY CFA; intube; 504WH; 150 STR
02. SIZES XS-S-M-L-XL
03. FORK Marzocchi Z1 E-Bike; Air; 160 STR; Tapered; 51mm fork offset
04. REAR SHOCK Rock Shox Super Deluxe Select+; platform
05. DRIVE UNIT Shimano E8000; 70Nm
06. BATTERY Shimano E8035; 504Wh
07. BATTERY CHARGER Shimano EC-E6000
08. DISPLAY Shimano SC-E8000
09. SWITCH Shimano SW-E7000-L
10. REAR DERAILLEUR Shimano XT RDM8100 Shadow+
11. SHIFTERS Shimano XT (1 x 12)
12. BRAKE-FRONT Shimano SLX; 4 piston
13. BRAKE-REAR Shimano SLX; 4 piston
14. ROTOR-FRONT Shimano RT64; 203 mm
15. ROTOR-REAR Shimano RTEM600; 203 mm
16. CHAINWHEEL Shimano CRE80-12-B; 34 ATC
17. CRANK Shimano E8000
18. CHAIN CN-M7100
19. CASSETTE Shimano M7100; 10-51 ATC; 12
20. PEDALS VP; VPE-537
21. HANDLEBAR MERIDA Expert eTR; 780 WHB; 20 RHB
22. HANDLEBAR STEM MERIDA Expert eTR; 35 DSH; 0 ASD
23. HEAD SET Merida 1901
24. SEAT POST MERIDA EXPERT TR; 30.9 DSP; 0 SB; XS: 125 SPT - S/M: 150 SPT - L/XL 170 SPT;
25. SADDLE MERIDA Expert CC
26. HUB-FRONT attached
27. HUB-REAR attached
28. AXLE-FRONT attached
29. AXLE-REAR MERIDA COMP TR; including removeable lever, 6/4mm allen key
30. SPOKE attached
31. RIMS E-METAL 700 29 TR AFS front BOOST HH15/110 - rear BOOST HH12/148 HG11 (
32. TYRE-FRONT Maxxis Assegai; 29x2.5 "; fold; 3C EXO+
33. TYRE-REAR Maxxis DHR II; 27.5x2.6 "; fold; 3C EXO+
34. MUDGUARD C093-02F + C093-02R

Specifications
01. FRAME eONE-SIXTY CFA; intube; 504WH; 150 STR
02. SIZES XS-S-M-L-XL
03. FORK Rock Shox 35 Gold RL; Air; 160 STR; Tapered; 51mm fork offset
04. REAR SHOCK Rock Shox Super Deluxe Select+; platform
05. DRIVE UNIT Shimano E7000; 60Nm
06. BATTERY Shimano E8035; 504Wh
07. BATTERY CHARGER Shimano EC-E6002; 2A
08. DISPLAY Shimano SC-E7000
09. SWITCH Shimano SW-E7000-L
10. REAR DERAILLEUR Shimano Deore Shadow+
11. SHIFTERS Shimano Deore (1 x 10)
12. BRAKE-FRONT Shimano MT-520; 4 piston
13. BRAKE-REAR Shimano MT-520; 4 piston
14. ROTOR-FRONT Shimano RT30; 203 mm
15. ROTOR-REAR Shimano RTEM300; 203 mm
16. CHAINWHEEL Shimano CRE70-B; 34 ATC
17. CRANK Shimano E8000
18. CHAIN CNHG54
19. CASSETTE Shimano HG500; 11-42 ATC, 10
20. PEDALS VP; VPE-537
21. HANDLEBAR MERIDA Expert eTR; 780 WHB; 20 RHB
22. HANDLEBAR STEM MERIDA Expert eTR; 35 DSH; 0 ASD
23. HEAD SET Merida 1901
24. SEAT POST MERIDA COMP TR; 30.9 DSP; 0 SB; XS/S: 100 SPT - M/L/XL: 125 SPT
25. SADDLE MERIDA Comp CC
26. HUB-FRONT Shimano Deore; 110x15 WHF; 32 SPH; Centerlock
27. HUB-REAR Shimano Deore; 148x12 WHR; 36 SPH; Centerlock
28. AXLE-FRONT attached
29. AXLE-REAR MERIDA COMP TR; including removeable lever, 6/4mm allen key
30. SPOKE Black stainless
31. RIMS MERIDA Expert TR; 29 IWR
32. TYRE-FRONT Maxxis Assegai; 29x2.5 "; fold; 3C EXO+
33. TYRE-REAR Maxxis DHR II; 27.5x2.6 "; fold; 3C EXO+
34. MUDGUARD C093-02F + C093-02R
