To this day, Mondraker is chosen by the most experienced riders looking for a bike that helps them push their limits to a higher level. The same machines that our professional racers use successfully in the most demanding competitions around the world.
21 Mondraker Level RR
Regular price $13,399.00
Frame
Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal removable battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock
Öhlins TTX22M 225x75mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings
C10 compression, R35 rebound. Spring rate: S size 251 lbs, M size 297 lbs, L size 343 lbs, XL size 411 lbs
Fork
Öhlins RXF 38 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Krypton FG 30mm, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
Saddle
SDG BEL-AIR 3.0, EVA foam, Alloy rails
Front brake
Sram Code RSC, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims
e*thirteen E*Spec Plus, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes
Spokes
e*thirteen custom J-bend, triple-butted alloy, alloy nipples, nipple washers
Front hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset
E.13 E*Spec Plus ebike, 165mm
Rings
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain
Sram GX Eagle, 12s, Powerlock
Rear derrailleur
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Casette
Sram PG-1230, 11-50T, 12s
Derailleur hanger
Mondraker M068
Weight
25.5 kg
Display
Bosch Kiox
Motor
Bosch Performance Line CX Cruise (25Km/h) GEN4
Battery
Bosch Powertube 625Wh
21 Mondraker Crafty Carbon R
Regular price $12,699.00Picture
Crafty Stealth Air full Carbon, Zero suspension system optimized for e-Bike, Forward, Geometry, 150mm travel, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, monobloc top link, HHG internal routing, MAX sealed bearings , 17mm oversized axles, integrated dropout speed sensor, plastic engine guard
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Shock absorber
Fox Float DPS Performance, 205x65mm. Adjustments: Lever with 3 compression positions, low speed rebound and air preload. Trunnion top anchor, bottom 25x10mm with bushings
Damper adjustment
Compression 'medium', rebound 'medium', volume spacer 0.4
Fork
Fox 36 29 Float FIT GRIP EVOL Performance, 160mm, e-bike optimized, tapered head tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3-position micro-adjust compression, low-speed rebound, and air preload
Direction
1-1 / 2 "custom acros, 40x52x7 angular contact bearings, internal cable routing
Power
Onoff Krypton FG 30mm, forged 6061 alloy, 31.8mm bore
Handlebar
Onoff Krypton 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9th backsweep, 5th upsweep, 31.8mm bore
Cuffs
Onoff Desert, 1lock-on, 135mm, sizes: S / ML / XL
Shank
Onoff Internal dropper sleeve, diameter 31.6mm, size S: 387x125mm, size M: 425x150mm, sizes L / XL: 465x170mm
Saddle
Fizik Antares R7
Front brake
Sram G2 RSC, 4-piston caliper, 200mm one-piece Centerline discs, 6-bolt IS, organic steel-backed pads
Back brake
Sram G2 RSC, 4-piston caliper, 200mm one-piece Centerline discs, 6-bolt IS, organic steel-backed pads
Brake levers
Sram G2 RSC, lever and SwingLink bearings, lever reach adjustments and tool-free pad contact
Rims
DT Swiss H1900 Spline 29, 30mm inner width, alloy, tubeless ready, 28h
Radios
DT Hybrid SP, direct pull
Front hub
DT 370, Boost 15x110mm, IS 6 bolts
Rear hub
DT 370, Boost 12x148mm, 3 Pawl system, IS 6 bolt
Front tire
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA compound, EXO +, 120TPI, foldable
Rear tire
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA compound, EXO +, 120TPI, foldable
Connecting rods
E.13 E * Spec Plus ebike, 165mm
Dishes
Sram X-Sync 2 Eagle 34 tooth, alloy, narrow-wide, 104 BCD
Chain
Sram NX Eagle, 12v, Powerlock
Shift - rear
Sram GX Eagle, Type 3 lock-out, 1x12v, X-Actuation 1: 1
Controls - change buttons
Sram Trigger NX Eagle, 12v, X-Actuation 1: 1, single click
Pinions
Sram XG-1230, 11-50 teeth, 12v
Derailleur hanger
Mondraker M068
Weight without pedals
22.0 kg
Display
Bosch Kiox
Motor
Bosch Performance Line CX Cruise (25Km / h) GEN4
Battery
Bosch Powertube 625Wh
21 Mondraker Crafty R
Regular price $9,699.00Picture
Crafty Stealth Evo 6061 alloy, Zero suspension system optimized for e-Bike, Forward Geometry, 150mm travel, removable internal battery with aluminum protector, Boost 12x148mm rear axle, tapered head tube, monobloc top link, HHG internal routing, ball bearings MAX sealed, 17mm oversized axles, integrated dropout speed sensor, plastic engine guard
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Shock absorber
Fox Float DPX2 LV EVOL Performance, 205x65mm. Adjustments: Lever with 3 compression positions, low speed rebound and air preload. Trunnion top anchor, bottom 25x10mm with bushings
Damper adjustment
CEC001 compression, 'medium' rebound, 0.2 volume spacer
Fork
Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike optimized, tapered head tube, Boost 15x110mm axle, 44mm offset. Settings: 3-position micro-adjust compression, low-speed rebound, and air preload
Direction
Onoff Saturn tapered 1-1 / 8 "to 1-1 / 2", ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Power
Onoff Sulfur FG 30mm 0º, forged 6061 alloy, 31.8mm bore
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9th backsweep, 5th upsweep, 31.8mm bore
Cuffs
Onoff Desert, 1lock-on, 135mm, sizes: S / ML / XL
Shank
Onoff Internal dropper sleeve, diameter 31.6mm, size S: 387x125mm, size M: 425x150mm, sizes L / XL: 465x170mm
Saddle
SDG BEL-AIR 3.0, EVA foam, steel rails
Front brake
Sram G2 R, 4-piston caliper, IS 6-bolt one-piece Centerline 200mm rotor, organic steel mount pads
Back brake
Sram G2 R, 4-piston caliper, IS 6-bolt one-piece Centerline 200mm rotor, organic steel mount pads
Brake levers
Sram G2 R, tool-free reach adjustment
Rims
DT Swiss H1900 Spline 29, 30mm inner width, alloy, tubeless ready, 28h
Radios
DT Hybrid SP, direct pull
Front hub
DT 370, Boost 15x110mm, IS 6 bolts
Rear hub
DT 370, Boost 12x148mm, triple ratchet system, IS 6 bolts
Front tire
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA compound, EXO +, 120TPI, foldable
Rear tire
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA compound, EXO +, 120TPI, foldable
Connecting rods
Race Face Aeffect ebike, 165mm
Dishes
Sram X-Sync 2 Eagle 34 tooth, steel, narrow-wide, 104 BCD
Chain
Sram SX Eagle, 12v, Powerlock
Shift - rear
Sram GX Eagle, Type 3 lock-out, 1x12v, X-Actuation 1: 1
Controls - change buttons
Sram Trigger NX Eagle, 12v, X-Actuation 1: 1, single click
Pinions
Sram PG-1210, 11-50 teeth, 12v
Derailleur hanger
Mondraker M068
Weight without pedals
24.9 kg
Display
Bosch Kiox
Motor
Bosch Performance Line CX Cruise (25Km / h) GEN4
Battery
Bosch Powertube 625Wh

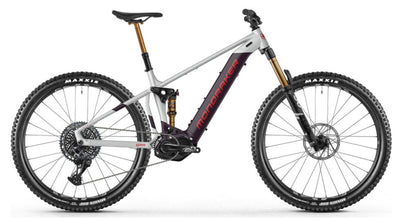

21 Mondraker Dusk RR
Regular price $9,399.00Picture
Dusk Stealth Evo Aluminum 6061, Zero suspension system optimized for e-Bike, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, monobloc top link, HHG internal routing, MAX sealed bearings, 17mm oversized axles, speed sensor integrated in the toe box. * Optional external battery
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Shock absorber
Fox Float DPS LV EVOL Performance, 205x65mm. Settings: 3-position compression per lever, low speed rebound and air preload. Trunnion top anchor, bottom 25x10mm with bushings
Damper adjustment
Compression 'medium', rebound 'medium', volume spacer 0.4
Fork
Fox 36 29 Float FIT4 EVOL Factory Kashima, 160mm, e-bike optimized, tapered head tube, 15x110mm Boost axle, 44mm offset, 68mm OD crown. Settings: 3-position micro-adjust compression, low-speed rebound, and air preload
Direction
Onoff Saturn tapered 1-1 / 8 "to 1-1 / 2", ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Power
Onoff Sulfur FG 30mm 0º, forged 6061 alloy, 31.8mm bore
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9th backsweep, 5th upsweep, 31.8mm bore
Cuffs
Onoff Twin, 1lock-on, 135mm
Shank
Onoff Internal dropper sleeve, diameter 31.6mm, size S: 387x125mm, size M: 425x150mm, sizes L / XL: 465x170mm
Saddle
Mondraker e-MTB custom design
Front brake
Shimano M6120, 4-piston caliper, RT66 203mm IS 6-bolt rotor, resin pads
Back brake
Shimano M6120, 4-piston caliper, RT66 203mm IS 6-bolt rotor, resin pads
Brake levers
Shimano M6100, servo wave, aluminum lever, reach adjustment with tool
Rims
DT Swiss H1900 Spline 29, 30mm inner width, alloy, tubeless ready, 28h
Radios
DT Hybrid SP, direct pull
Front hub
DT 370, Boost 15x110mm, IS 6 bolts
Rear hub
DT 370, Boost 12x148mm, triple ratchet system, IS 6 bolts
Front tire
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO, 60TPI, folding
Rear tire
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO, 60TPI, folding
Connecting rods
Shimano STEPS EM600, 165mm
Dishes
Shimano E8000 34 tooth, steel, 104 BCD
Chain
Shimano Deore M6100, 12v, Quick-link
Shift - rear
Shimano XT M8100, SGS, Shadow +, 12v
Controls - change buttons
Shimano Deore M6100, Rapid Fire Plus, 12s
Pinions
Shimano Deore M6100, 10-51 teeth Hyperglide +, 12s
Derailleur hanger
Mondraker M068
Others
* Optional external battery: Simplo 360Wh
Weight without pedals
23.0 kg
Display
Shimano STEPS E7000
Motor
Shimano STEPS EP800
Battery
Simplo internal 630Wh

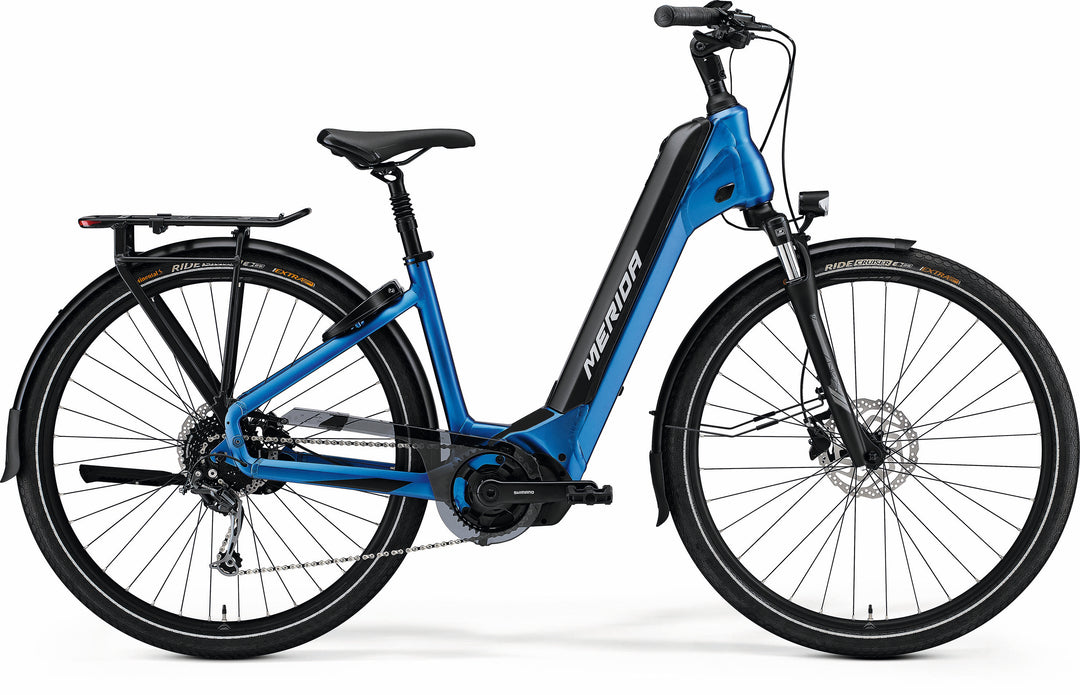

21 eSPRESSO 300SE EQ 418 W - ANTHRACITE (BLACK)
Regular price $3,699.00All models ride on fast-rolling 700c wheels, ideal for rides on roads, lanes and smooth tracks. We fit tyres with reflective sidewalls and puncture protection that will get you to your destination quickly and safely. However, our 'classic' eSPRESSO frames can also take 650B wheels if needed.
| 01. FRAME | eSPRESSO LITE; MAT aluminium |
| 02. SIZES | XS(43L)-S(47L)-M(51L)-L(55L) |
| 03. FORK | Suntour NEX-PM-DS; Coil; 63 STR |
| 04. DRIVE UNIT | Shimano E5000; 40Nm |
| 05. BATTERY | Shimano E8014; 418Wh |
| 06. BATTERY CHARGER | Shimano EC-E6002; 2A |
| 07. DISPLAY | Shimano SC-E5000 |
| 08. REAR DERAILLEUR | Shimano Altus M2000 |
| 09. SHIFTERS | Shimano Altus rapidfire |
| 10. BRAKES | Shimano MT-200; 2 piston |
| 11. ROTOR - FRONT | Shimano RT10; 180 mm |
| 12. ROTOR - REAR | Shimano RT10; 160 mm |
| 13. CHAINWHEEL | Shimano CRE50; 38 ATC |
| 14. CRANK SIZE | Shimano FC-E5010; 170mm |
| 15. CHAIN | KMC e9S |
| 16. CASSETTE | Shimano HG400; 11-36 ATC; 9 Speed |
| 17. PEDAL | VP; VPE-891 |
| 18. HANDLEBAR | MERIDA EXPERT TK; MAT aluminium; 660 WHB; 15 RHB |
| 19. HANDLEBAR STEM | MERIDA EXPERT CC; MAT aluminium; 31.8 DSH; 17 ASD |
| 20. STEM SIZE | 80 mm-XS/S, 90 mm-M, 100 mm-L, 110 mm-XL |
| 21. SEAT POST | MERIDA EXPERT; MAT aluminium; 30.9 DSP; 15 SSB |
| 22. SADDLE | MERIDA EXPERT TK; V-mount |
| 23. HUB - FRONT | Shimano TX505; 100x9 WHF; 32 SPH; Centerlock |
| 24. HUB - REAR | Shimano MT400; 142x12 WHR; 36 SPH; Centerlock |
| 25. AXLE - REAR | MERIDA COMP TR; including removeable lever, 6/4mm allen key |
| 26. RIMS | MERIDA COMP TK; 20 IWR; MAT aluminium |
| 27. TYRES | Continental RIDE TOUR; 622x42"; reflective stripe |
| 28. CARRIER | MERIDA MIK Carrier with Spring clip & H-Cargo Light |
| 29. FENDER | Sunnywheel SW-FA 513 |
| 30. KICKSTAND | CL-KA98 |
| 31. LIGHT - FRONT | Herrmans H-BLACK MR4 E |
| 32. LIGHT - REAR | Herrmans H-Cargo integrated in MERIDA MIK carrier |
| 33. FRAME LOCK | Abus 5650 LH-3 lock |
INDIE VLT STEP THROUGH
Regular price $4,999.00Escape the ordinary and colour outside the paved lines of city riding aboard the electric assist Indie VLT.
The Indie VLT’s versatility and convenience easily integrates cycling into daily life.
The fully integrated Shimano STEPS E6100 electric drive system is seamlessly mounted into its aluminum frame, making it easy to ride, simple to operate and ideal for urban adventure.
| 01. FRAME | Indie VLT Aluminum w/Smooth Welds |
| 02. FORK | Mobie A32 63mm 27.5 w/ Lock Out |
| 03. HANDLE BAR | Aluminum Ergonomic 25mm Riser w/30Deg Backsweep |
| 04. STEM | Aluminum - Black |
| 05. SEAT POST | Dropper post w/100mm travel |
| 06. SADDLE | Selle Royal Lift eBike Saddle w/ Handle |
| 07. FRONT BRAKE | Tektro HD-M285 Hydraulic for eBike |
| 08. REAR BRAKE | Tektro HD-M285 Hydraulic for eBike |
| 09. SHIFTER REAR | Shimano Alivio SL-M3100 9spd |
| 10. REAR DERAILLEUR | Shimano Alivio RD-M3100 Shadow |
| 11. CASSETTE | Shimano CS-HG200 11-36T 9spd |
| 12. CRANKSET | Alloy Crankarm for 6100 w/ 38T Narrow Wide |
| 13. FRONT HUB | Alloy 15x100mm Thru-Axle 32h |
| 14. REAR HUB | Alloy 12x148mm Thru-Axle 32h |
| 15. RIMS | Alex EXR25 Double Wall Alloy |
| 16. DRIVE UNIT | Shimano STEPS E6100 |
| 17. BATTERY | Shimano E8035 Integrated, 504Wh |
| 18. DISPLAY | Shimano E6100 |
INDIE VLT 1 RED/SILVER
Regular price $4,999.00Escape the ordinary and colour outside the paved lines of city riding aboard the electric assist Indie VLT.
The Indie VLT’s versatility and convenience easily integrates cycling into daily life.
The fully integrated Shimano STEPS E6100 electric drive system is seamlessly mounted into its aluminum frame, making it easy to ride, simple to operate and ideal for urban adventure.
| 01. FRAME | Indie VLT Aluminum w/Smooth Welds |
| 02. FORK | Mobie A32 63mm 27.5 w/ Lock Out |
| 03. HANDLE BAR | Aluminum Ergonomic 25mm Riser w/30Deg Backsweep |
| 04. STEM | Aluminum - Black |
| 05. SEAT POST | Dropper post w/100mm travel |
| 06. SADDLE | Selle Royal Lift eBike Saddle w/ Handle |
| 07. FRONT BRAKE | Tektro HD-M285 Hydraulic for eBike |
| 08. REAR BRAKE | Tektro HD-M285 Hydraulic for eBike |
| 09. SHIFTER REAR | Shimano Alivio SL-M3100 9spd |
| 10. REAR DERAILLEUR | Shimano Alivio RD-M3100 Shadow |
| 11. CASSETTE | Shimano CS-HG200 11-36T 9spd |
| 12. CRANKSET | Alloy Crankarm for 6100 w/ 38T Narrow Wide |
| 13. FRONT HUB | Alloy 15x100mm Thru-Axle 32h |
| 14. REAR HUB | Alloy 12x148mm Thru-Axle 32h |
| 15. RIMS | Alex EXR25 Double Wall Alloy |
| 16. DRIVE UNIT | Shimano STEPS E6100 |
| 17. BATTERY | Shimano E8035 Integrated, 504Wh |
| 18. DISPLAY | Shimano E6100 |

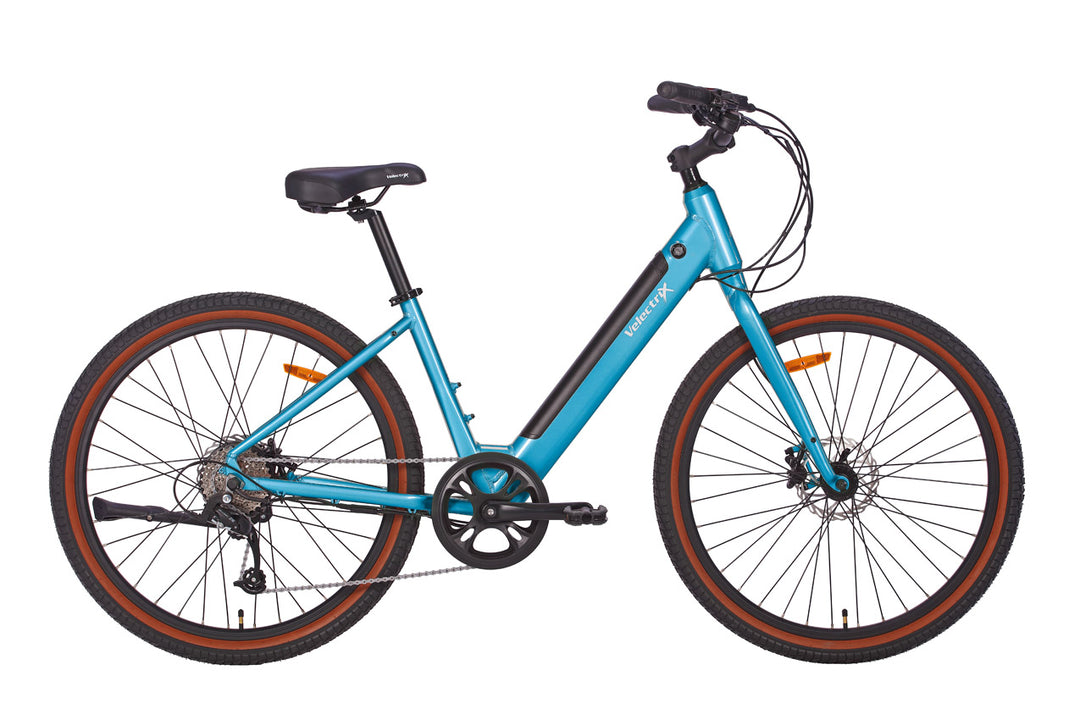

SCENE VLT
Regular price $3,999.00The Scene VLT is an ultra-versatile, relaxed step-through electric hybrid that allows riders of all sorts to get around easily and replaces the need for a car in the city.
The nearly silent Shimano STEPS drive system is integrated into its beautiful alloy e-bike frame with a low center of gravity, stress-free mounts and dismounts, and easy maneuverability.
The Scene VLT makes even the hilliest rides no sweat at all.
| 01. FRAME | Double Butted Alloy E-Bike Frame, Internal Cables |
| 02. FORK | Alloy Blades, Steel Steerer |
| 03. REAR SHOCK | - |
| 04. HEADSET | Zero Stack |
| 05. GRIPS | Dual Density Ergonomic, Single Lock |
| 06. HANDLE BAR | Norco Custom High Rise City |
| 07. STEM | Alloy 17 Degree Rise |
| 08. SEAT POST | JD TranzX Dropper, S/M 80mm, L 100mm |
| 09. SEAT POST CLAMP | Norco Alloy Nutted |
| 10. SADDLE | Norco Comfort w/Elastomers |
| 11. BRAKES | Tektro HD-M275, Hydraulic Disc, 160mm |
| 12. SHIFTER REAR | Shimano Alivio SL-M4000, 9 speed |
| 13. REAR DERAILLEUR | Shimano Alivio RD-M4000 |
| 14. CASSETTE | Shimano Alivio CS-HG400, 11-36T |
| 15. CHAIN | KMC E9-Sport |
| 16. CRANKSET | Shimano 38T chainring w/chainguard |
| 17. BOTTOM BRACKET | Shimano STEPS E6100 |
| 18. CHAIN TENSIONER | - |
| 19. PEDALS | City Pedal, Kraton Traction Inlay |
| 20. FRONT HUB | Novatec sealed bearing, 15x100mm |
| 21. FRONT HUB SKEWER/AXLE | Alloy, 15x100mm Allen Bolt TA |
| 22. REAR HUB | Novatec sealed bearing Cassette, 12x142mm |
| 23. REAR HUB SKEWER/AXLE | Alloy, 12x142mm, Allen Bolt TA |
| 24. SPOKES/NIPPLES | Stainless, Black, Brass Nipples |
| 25. RIMS | Alloy DW Disc, 27.5" |
| 26. FRONT TYRE | Kenda Kwick Seven5, 27.5x2.2", 60 TPI. Gumwall |
| 27. REAR TYRE | Kenda Kwick Seven5, 27.5x2.2", 60 TPI. Gumwall |
| 28. MOTOR | Shimano STEPS E6100 |
| 29. BATTERY | Shimano 500Wh |
| 30. KICKSTAND | Center Mount Alloy, Black, E-Bike Rated |
