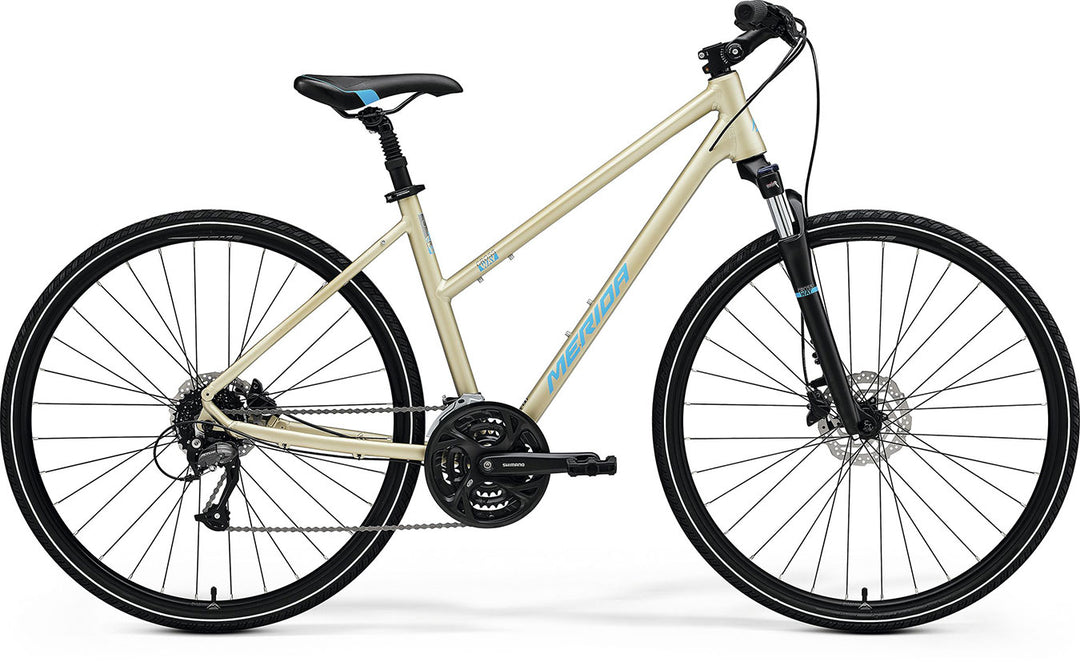

CROSSWAY 40 W - SILK CHAMPAGNE (BLUE)
The Merida Crossway 40 is a hybrid bike that is built for maximum comfort on any surface. Commute or ride with your mates on a bike that is at home on the bike path or the dirt path. Merida designed this bike with a durable yet lightweight alloy double butted frame so that strength isn't sacrificed for the lightweight design. The relaxed geometry is a fusion of road and mountain bike geometry, with a sloping top tube and oversized tubing offering reliable steering and a stiff frame.
Crossway DT Frame: 6061 double butted and technoformed aluminium frame. Equipped with mounts for rack, mudguards and kickstand.
TFS Frame: Our CROSSWAY TFS frame forms a link between our road and mountain bike frames in design and functionality. The steeply sloping top tube provides an excellent standover height in every riding situation, and the hidden cable routing underneath the down tube makes the frame look clean and protect the cables from moisture and dirt. The MTB inspired oversized tubing, and the tapered head tube provides superb frame stiffness and optimum steering precision.
Comfort: Our CROSSWAY models are equipped with suspension forks and suspension seat posts, on most models, to iron out any surface bumps. Adjustable ahead stems are also fitted (now including our SPEED models), providing an adjustable riding position for maximum sitting comfort on the bike. The exceptions are the sportier models that feature a regular seat post and stem.
Adaptability: Mudguards, racks and kickstands can be added to all CROSSWAY models, making them usable in many circumstances.
01. FRAME | CROSSWAY TFS; MAT aluminium; 700C WHS; 135x9 AST; BSA BBR |
02. SIZES | man:XS-S-M-L-XL |
03. FORK | Suntour NEX HLO; Coil; 63 STR; lockout |
04. GEARS | 3 X 9 |
05. CRANKSET | Shimano FC-M371; 48-36-26 ATC |
06. CRANK LENGTH | 170 mm-XXS/SM, 175 mm-ML/XXL |
07. BOTTOM BRACKET | FSA TH-7420ST-W, Cartridge Bearing |
08. CASSETTE | Shimano CS-HG200; 11-32 ATC; 9 Speed |
09. CHAIN | KMC M99 |
10. FRONT DERAILLEUR | Shimano FD-M370 |
11. REAR DERAILLEUR | Shimano RD-M370 |
12. SHIFTERS | Shimano ST-EF505 |
13. BRAKE LEVER | Shimano ST-EF505 |
14. BRAKES | Shimano ST-EF505; BR-MT200 brake caliper |
15. ROTORS | Shimano RT10; 160 mm |
16. HANDLEBAR | MERIDA CC; MAT aluminium; 660 Wide; 25 Rise |
17. STEM | MERIDA TK; MAT aluminium; 25.4 Diameter; adjustable |
18. STEM LENGTH | 100 mm all sizes |
19. HEAD SET | FSA TH888/NO.10 |
20. SEAT POST | MERIDA CC; MAT aluminium; 30.9 DSP; 15 SSB |
21. SADDLE | MERIDA Cross Sport |
22. SPOKE | Black steel |
23. HUB-FRONT | Shimano TX505; 100x9 WHF; 32 Spokes; Centerlock |
24. HUB-REAR | Shimano TX505; 135x9 WHR; 32 Spokes; Centerlock |
25. AXLE | Quick Release |
26. RIMS | MERIDA CC; 17 IWR; MAT aluminium |
27. TYRES | MERIDA K1171; 700x40C; wire |
28. PEDALS | VP VPE-891 |
