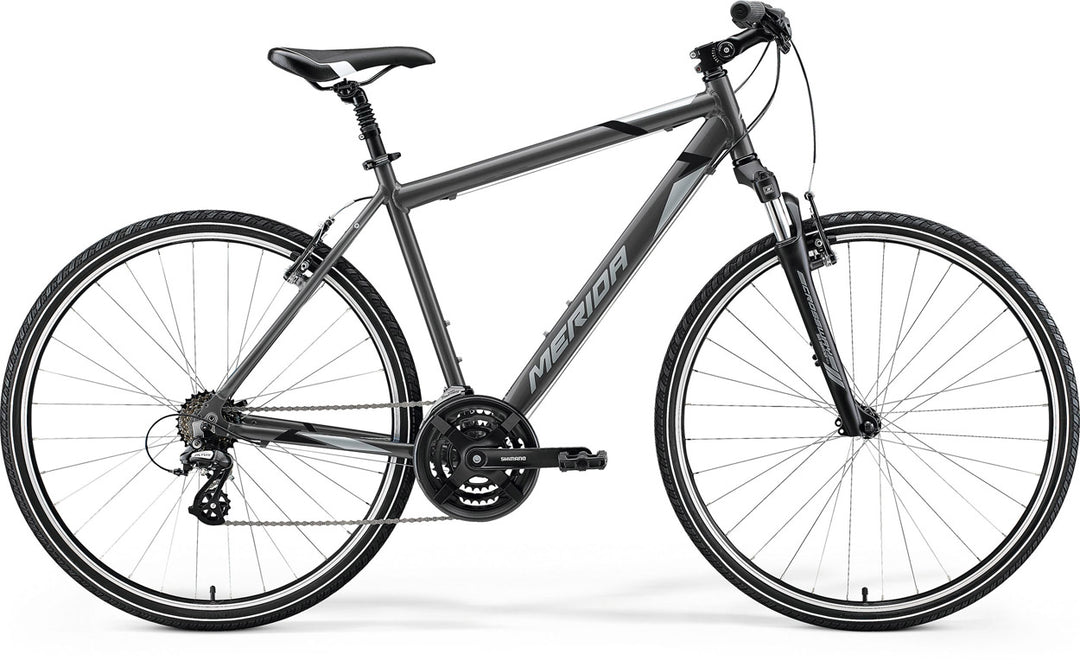

CROSSWAY 10-V - SILK ANTHRACITE (GREY/BLACK)

CROSSWAY 10-V - SILK ANTHRACITE (GREY/BLACK)

Regular price$679.00
/

Size

The Merida Crossway 10V is an entry level hybrid bike which is built for comfort and a great all-around ride. Commute or ride with your mates on a bike that maximises comfort and is at home on the bike path or the dirt path. Merida designed this bike with a durable yet lightweight alloy double butted frame so that strength iisn't sacrificed for the lightweight design. The relaxed geometry is a fusion of road and mountain bike geometry, with a sloping top tube and oversized tubing offering reliable steering and a stiff frame.

Crossway DT Frame: 6061 double butted and technoformed aluminium frame. Equipped with mounts for rack, mudguards and kickstand.

TFS Frame: Our CROSSWAY TFS frame forms a link between our road and mountain bike frames in design and functionality. The steeply sloping top tube provides an excellent standover height in every riding situation, and the hidden cable routing underneath the down tube makes the frame look clean and protect the cables from moisture and dirt. The MTB inspired oversized tubing, and the tapered head tube provides superb frame stiffness and optimum steering precision.

Comfort: Our CROSSWAY models are equipped with suspension forks and suspension seat posts, on most models, to iron out any surface bumps. Adjustable ahead stems are also fitted (now including our SPEED models), providing an adjustable riding position for maximum sitting comfort on the bike. The exceptions are the sportier models that feature a regular seat post and stem.

Adaptability: Mudguards, racks and kickstands can be added to all CROSSWAY models, making them usable in many circumstances.

01. FRAME CROSSWAY DT; MAT aluminium; 700C WHS; 135x9 AST; BSA BBR
02. SIZES XS-S-SM-ML-L-XL
03. FORK Suntour NEX; Coil; 63 STR
04. GEARS 3 X 7
05. CRANKSET Shimano TY301; 48-38-28 ATC
06. CRANK LENGTH 170 mm-XXS/SM, 175 mm-ML/XXL
07. BOTTOM BRACKET FSA TH-7420ST-W, Cartridge Bearing
08. CASSETTE Shimano MF-TZ500; 14-28 ATC; 7 Speed
09. CHAIN KMC Z7
10. FRONT DERAILLEUR Shimano FD-TY510
11. REAR DERAILLEUR Shimano RD-M310
12. SHIFTERS Shimano ST-EF500
13. BRAKE LEVER Shimano ST-EF500
14. BRAKES Promax MTV-117A
15. ROTORS N/A
16. HANDLEBAR MERIDA CC; MAT steel; 620 Wide; 30 Rise
17. STEM MERIDA TK; MAT aluminium; 25.4 Diameter; adjustable
18. STEM LENGTH 100 mm all sizes
19. HEAD SET FSA TH888
20. SEAT POST MERIDA TK; 27.2 Diameter; 13 Setback; 40 SST
21. SADDLE MERIDA Cross Sport
22. SPOKE Steel UCP
23. HUB-FRONT Joytech JY-751DSE; 100x9 WHF; 32 Spokes
24. HUB-REAR Joytech JY-752DSE; 135x9 WHR; 32 Spokes
25. AXLE Quick Release
26. RIMS MERIDA CC; 17 IWR; MAT aluminium
27. TYRES MERIDA K1171; 700x40C; wire
28. PEDALS VP VPE-891
