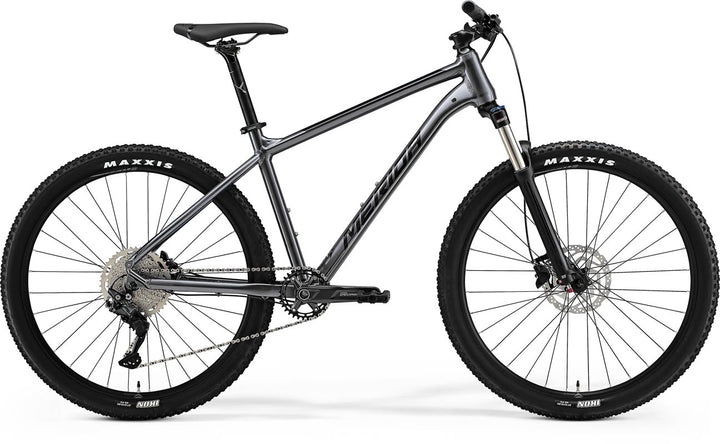

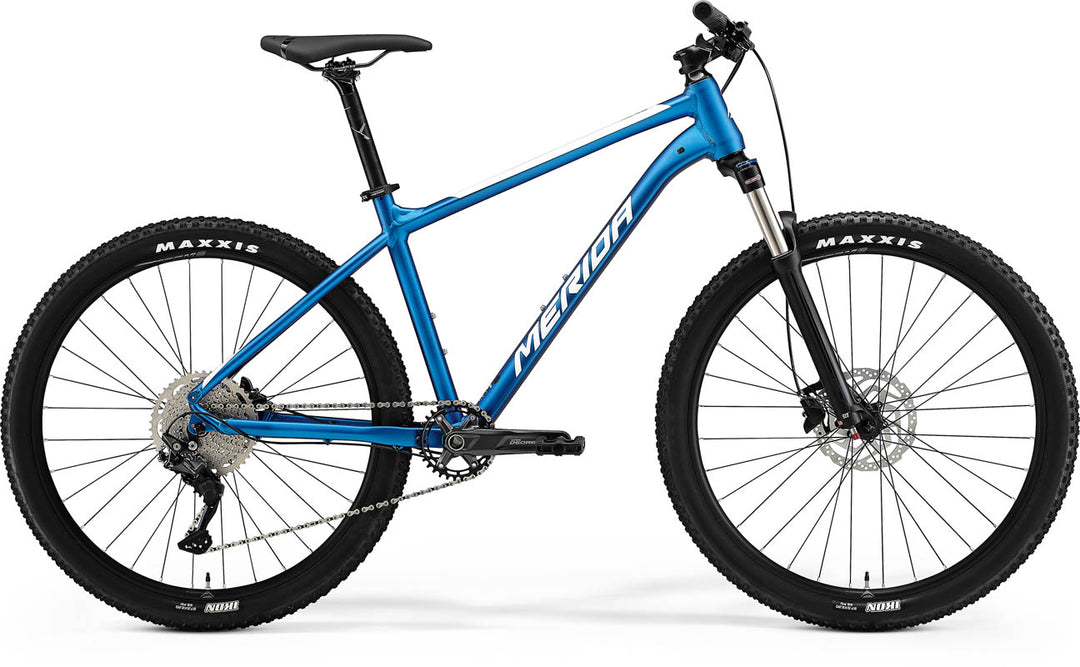

BIG.SEVEN 200

Regular price $1,199.00 Save $-1,199.00
BIG.SEVEN 200
BIG.SEVEN 200

THIS IS WHAT WE DO

Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we were able to gain in 48 years of bike production and manufacturing. The BIG.NINE and BIG.SEVEN range symbolises the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.

MULTIPLE FRAME OPTIONS

Besides offering the BIG.NINE in a full carbon version, we also have BIG.NINE LITE and BIG.NINE/ SEVEN TFS aluminium frames in our range. While the LITE features the same race-proven geometry as the carbon models, the TFS bikes offer a more relaxed geometry, through a shorter top tube and a higher head tube, resulting in a more upright riding position and enhanced trail visibility. The TFS frames feature internal cable routing (except the BIG.NINE/BIG.SEVEN 15), smooth welding, tapered head tube, inboard disc mounts, and mounts for fenders, rear rack and kickstand.

01. FRAME BIG.SEVEN TFS III; MAT aluminium; 27.5 WHS; 135x9 AST; BSA BBR
02. SIZES XS-S
03. FORK Suntour XCR LOR; Air; 100 STR; Lockout; 42mm fork offset
04. GEARS 1 x 10
05. CRANKSET Shimano Deore M5100; 32 ATC
06. CRANK LENGTH 170 mm-S, 175 mm-M up
07. BOTTOM BRACKET Shimano UN100 BSA
08. CASSETTE Shimano Deore M4100; 11-46 ATC; 10 Speed
09. CHAIN KMC M99
10. CHAINGUARD -
11. FRONT DERAILLEUR -
12. REAR DERAILLEUR Shimano Deore M5120 Shadow+
13. SHIFTER - FRONT -
14. SHIFTER - REAR Shimano Deore M4100
15. BRAKES Tektro M275; 2 piston
16. ROTOR - FRONT Shimano RT10; 180mm
17. ROTOR - REAR Shimano RT10; 160mm
18. HANDLEBAR MERIDA EXPERT CC; MAT aluminium; 720 Wide; 10 Rise
19. STEM MERIDA COMP CC; MAT aluminium; 31.8 Diameter; 6 degree Angle
20. STEM LENGTH XS/S-70 mm, M-80 mm, L-90 mm
21. HEAD SET MERIDA M2346 Neck
22. SEAT POST MERIDA COMP CC; MAT aluminium; 30.9 Diameter; 0 Setback
23. SADDLE MERIDA COMP CC
24. HUB - FRONT Shimano TX505; 100x9 WHF; 32 Spokes; Centerlock
25. HUB - REAR Shimano TX505; 135x9 WHR; 32 Spokes; Centerlock
26. AXLE - REAR -
27. SPOKES Black stainless
28. RIMS MERIDA COMP CC; 20 IWR; MAT aluminium
29. TYRES Maxxis Ikon; 27.5x2.2"; wire
30. PEDALS Plastic VPE-891
