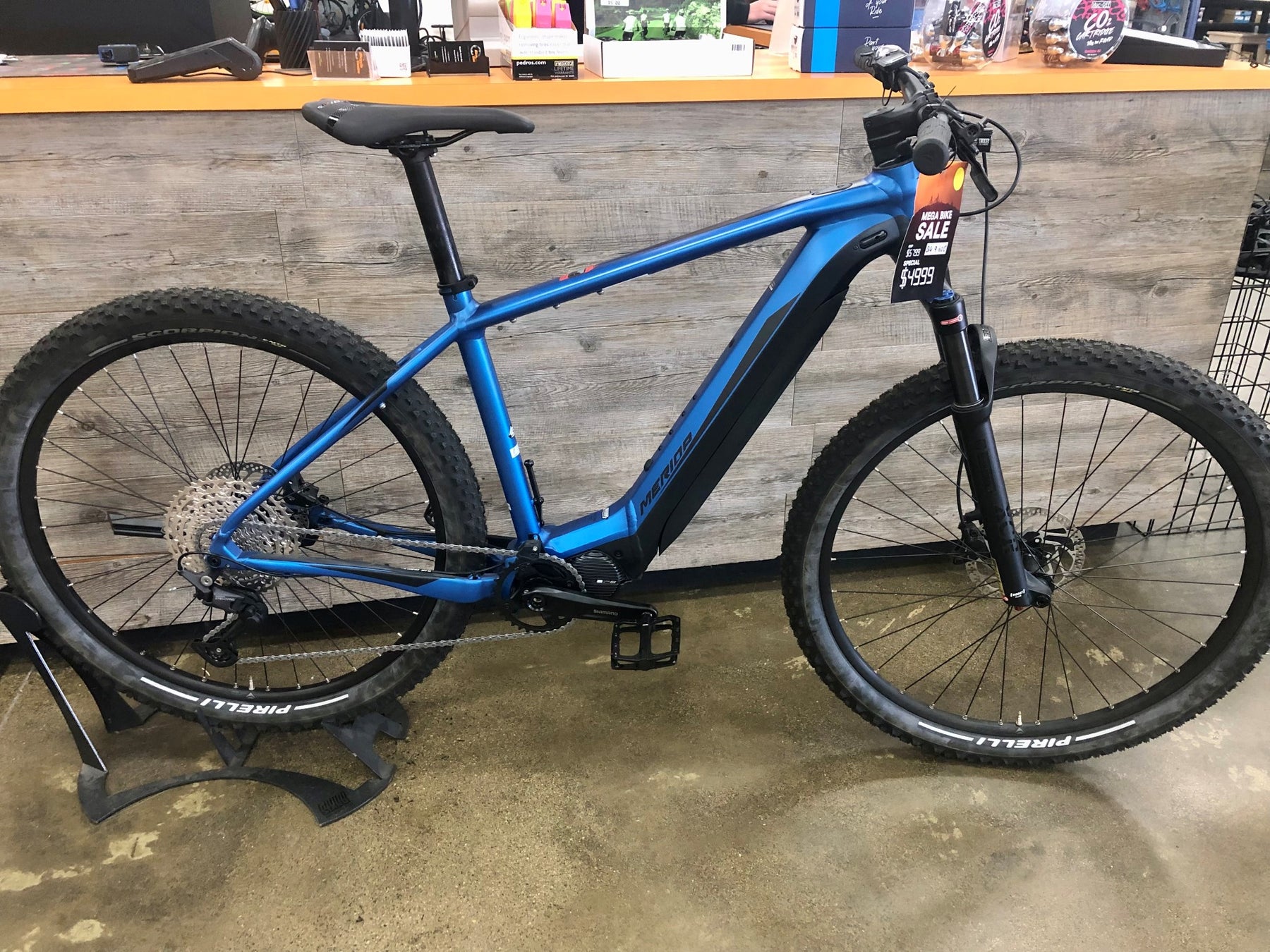

21 eBIG NINE 600 - SILK BLUE/BLACK

Regular price $5,499.00 Save $-5,499.00
0 in stock

Shimano's EP8 motor offers a perfectly balanced power delivery with up to 85 Nm and has further improved on size, weight, noise and motor drag. The new 630 Wh battery is perfectly integrated into the hydroformed down tube and delivers an impressive range for even longer detours home.

Due to the integrated battery, we were able to offer water bottle cage fixing points, allowing bottles or accessories like a lock or pump to the frame to be fitted into the main frame triangle. Great if you want to keep your back free of hydration packs and backpacks.

The geometry of our eBIG.NINE follows one very simple principle: As sporty as possible, as comfortable as necessary. You ride to work in the morning but fancy a little off-road detour on the way home? No problem – that is what these bikes are made for!

‘K-mount’ featuring bikes have fixing points on the chain stays to fit a MERIDA kickstand while ‘C-mount’ equipped bikes have the fixing point for the rear rack (carrier) integrated. ‘F-mount’ equipped bikes have the fixing points for the mudguards (fenders) already integrated.

01. FRAME eBIG.NINE LITE III; MAT aluminium; 29" WHS; 148x12 AST; intube; max. 630 Wh
02. SIZES S-M-L-XL
03. FORK Suntour XCR34 LOR DS; Air Boost; 100mm; Tapered; 51mm fork offset
04. DRIVE UNIT Shimano EP8; 85Nm
05. BATTERY Shimano E8036; 630Wh
06. BATTERY CHARGER Shimano EC-E6002; 2A
07. DISPLAY Shimano SC-E5003
08. REAR DERAILLEUR Shimano Deore RDM5100 11
09. SHIFTERS Shimano Deore M5100 11
10. BRAKE - FRONT Shimano M4100; 4 piston
11. BRAKE - REAR Shimano M4100; 2 piston
12. ROTOR - FRONT Shimano RT30; 180 mm
13. ROTOR - REAR Shimano RTEM300; 180 mm
14. CHAINWHEEL Shimano CRE70-B; 34 ATC
15. CRANK/SIZE Shimano FCEM600; 165 mm for all sizes
16. CHAIN Shimano HG601-11
17. CASSETTE Shimano M5100; 11-51 ATC; 11 Speed
18. PEDALS VP; VPE-537
19. HANDLEBAR MERIDA Expert eTR; 760 WHB; 20 RHB
20. HANDLEBAR STEM MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
21. STEM LENGTH 50mm all sizes
22. SEAT POST MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB
23. SADDLE MERIDA Comp CC; V-mount
24. HUB - FRONT Shimano MT400-B; 110x15 WHF; 32 SPH; Centerlock
25. HUB - REAR Shimano MT400-B; 148x12 WHR; 36 SPH; Centerlock
26. AXLE - REAR MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
27. RIMS MERIDA COMP CC; 20 IWR; MAT aluminium
28. TYRES Maxxis Ikon; 29x2.2"; kevlar bead
31. KICKSTAND CL-KA98, 29"
33. OTHER E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
34. OTHER USB REAR Light CG-214RG
