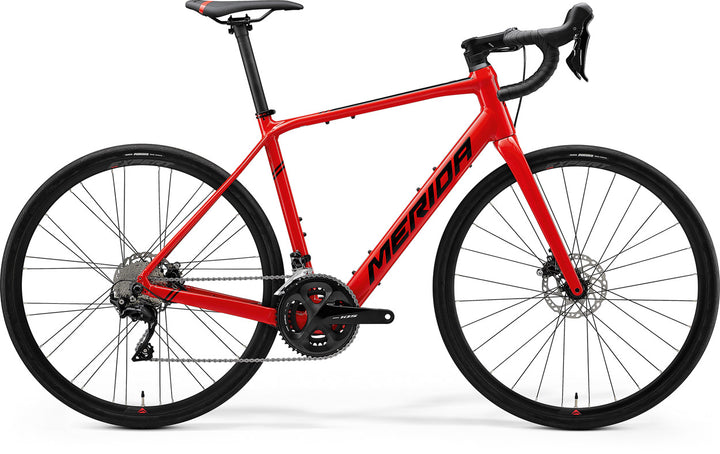

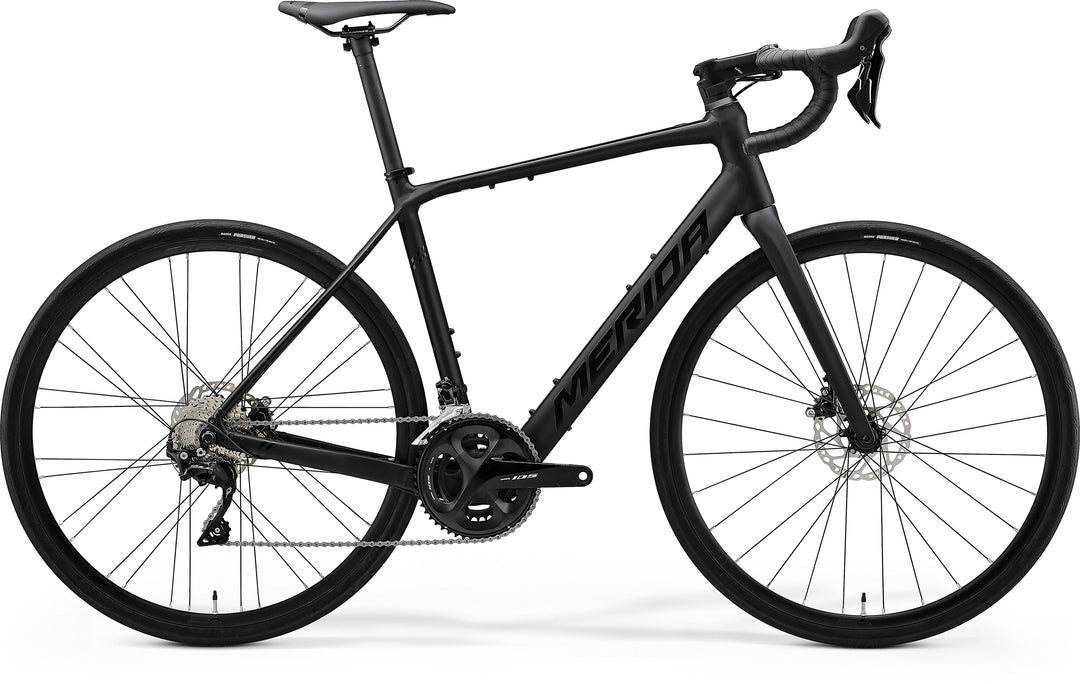

eSCULTURA 400
eSCULTURA 400

eSCULTURA 400

Regular price$4,999.00
/

Size
Color

The Merida eScultura 400 combines the classic Scultura with modern e-bike technology for a new and exciting electric road bike. The eScultura is for the rider that sometimes needs a helping hand on those challenging climbs yet still wants to pedal easily with punchy performance that isn’t weighed down by the extra weight. This bike separates itself from traditional e-bikes in that it looks like your everyday road bike thanks to the advanced MAHLE ebikemotion X35+ Rear Hub Motor (40 Nm) which is compact and extremely light so that you have a natural riding experience when you go beyond the 25 km/h maximum support level. Matched with the Mahle X35+ 250Wh Battery which is integrated into the lightweight alloy frame, ensuring that it is more than capable of all day riding and if that’s not enough then there is the option for a 208 Wh range extender (not included).

This setup adds minimal additional drag for an excellent riding experience, while the intelligent software gives you the opportunity to set the support levels at usage-specific levels to set up for your specific riding preferences eg. commuting. Merida has placed the iWOC on/off switch on the top tube to help keep the cockpit tidy, ensuring that it is in reach at all times and in all conditions. This switch is not just an on/off switch but the rider can also toggle between the different support level by pressing the button.

While the e-bike components are impressive it still has impressive spec across the range. It is equipped with a 2x11 speed Shimano 105 Drivetrain with 105 Hydraulic Disc Brakes for excellent braking control. Th eScultura rolls on 700x32c Maxxis Pursuer Tyres with excellent speed and traction however, it has tyre clearance for up to 40mm tyres for a smooth and comfortable ride. This speaks further to the emphasis on comfort and versatility for this bike. The Merida eScultura 400 is for the roadie who is after a helping hand or the rider that wants to commute with real speed, as the combination of modern technology and innovation makes this an e-bike in disguise, ready to match it with any roadie.

01. FRAME eSPEEDER LITE II; MAT aluminium; 700C WHS; 100x9/135x9 AST; BSA BBR
02. SIZES XS-S-SM-ML-L-XL
03. FORK MISSION CX CF3; MAT carbon
04. DRIVE UNIT MAHLE X35+ Hub Engine
05. BATTERY MAHLE B1-C 250Wh
06. BATTERY CHARGER MAHLE CHARGER-C
07. SWITCH MAHLE One Remote-C
08. BRAKE LEVER -
09. BRAKES Shimano 105; 2 piston
10. ROTOR-FRONT Shimano RT64; 160 mm
11. ROTOR-REAR Shimano RT66; 160 mm
12. SHIFTERS Shimano 105
13. CRANKSET Shimano 105; 50-34 ATC
14. CRANK SIZE 170 mm-XS/S/SM/ML, 175 mm-L/XL
15. BOTTOM BRACKET Shimano BSA
16. FRONT DERAILLEUR Shimano 105
17. REAR DERAILLEUR Shimano 105; GS
18. CASSETTE Shimano 105; 11-32 ATC; 11 Speed
19. CHAIN KMC e11S
20. PEDAL VP; VPE-891
21. HANDLEBAR MERIDA Expert CW
22. HANDLEBAR STEM MERIDA EXPERT IR; MAT aluminium; 31.8 DSH; 5 ASD
23. STEM SIZE 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
24. HEAD SET VP-MH-P16
25. SADDLE MERIDA COMP SL; V-mount
26. SEAT POST MERIDA EXPERT CC; MAT carbon; 30.9 DSP; 0 SSB
27. HUB-FRONT VP CLK170F; 100x12 WHF; 28 SPH; Centerlock
28. AXLE-FRONT MERIDA EXPERT SL
29. SPOKES Black stainless
30. RIMS MERIDA Expert SL; 17 IWR; 22 HRI
31. TYRES Maxxis Pursuer; 700x32C; fold
